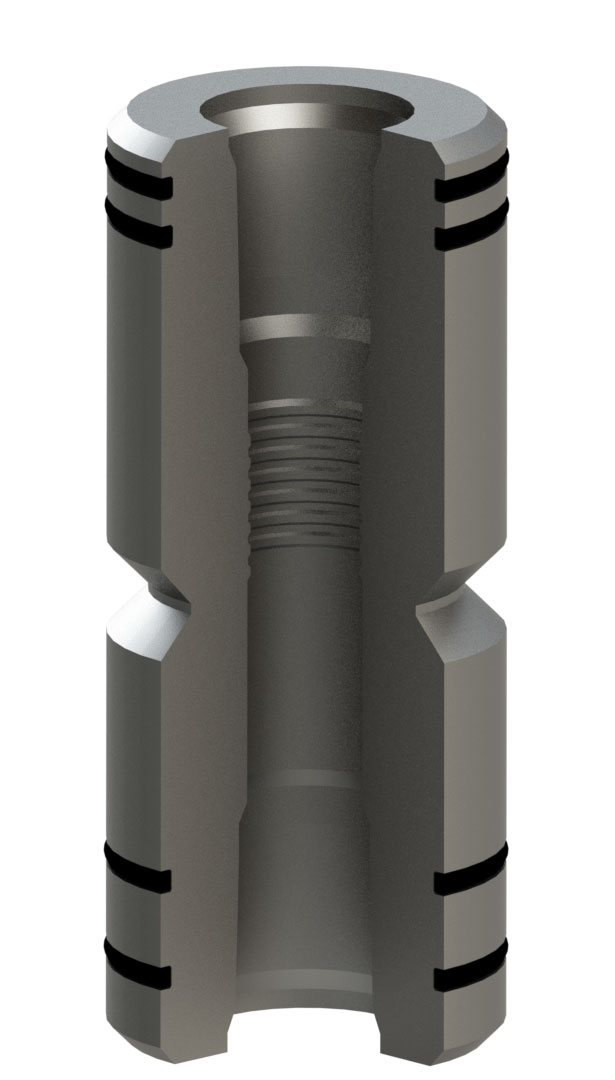

The MTH Hanger is designed to be used in the Mini Tubing Head. This hanger seals in the pocket of the tubing head adapter with S-Seals and also includes an type H Back Pressure Valve Prep. The hanger is offered in 4″ and 5″ NOM. Specific details available upon request.
FV-TC-1AEN Tubing Hanger is designed to fit in a TCM profile. The production tubing threads directly into the tubing hanger and the neck of the hanger is isolated in the bottom pocket of a FV-A5P tubing head adapter. The hangers come standard with type H-Back pressure Valve prep. The hanger is secured and packing energized by the LDS Lock Down Pins.
| Style | OD NOM | Label | Feature | Dimensional |
|---|---|---|---|---|
| TC1AEN | 7-1/16″ | A | Top Neck Diameter (2K Thru 15) | 5.495″ |
| B | Body Diameter (2K Thru 15K) | 6.990″ | ||
| C | Overall Length (2K Thru 5K) Overall Length (10K/15K) |
10.38” (2K Thru 5K) 11.63” (10K/15K) |

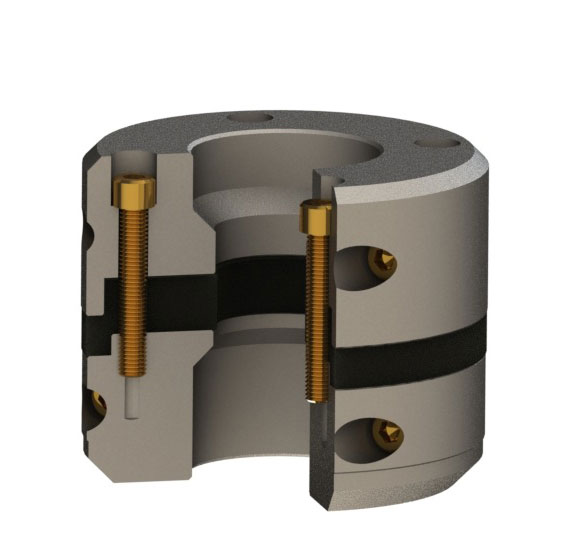

The FV-TC-1W is designed to fit into a 7″ NOM TCM profile bowl, with seals being energized by lock pin engagement. *The TC-1W is used as a pack off element, not a hanger.
